SANY brand

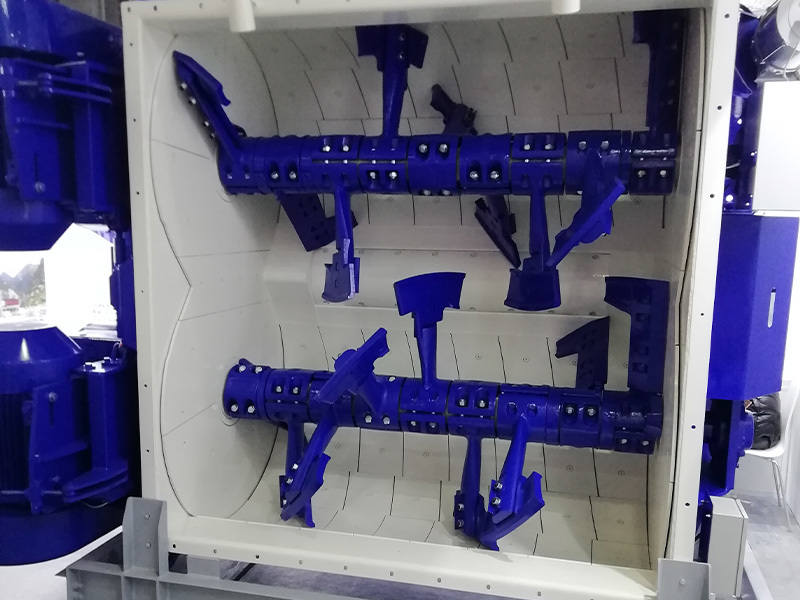

The lining plate of the concrete mixer is cast from high-chromium alloy and strengthened through heat treatment process. The bolt holes adopt a precise countersunk structure, effectively preventing slurry leakage. Suitable for dry-hard, plastic and ultra-high performance concrete, it is widely used in national-level projects such as high-speed railway Bridges and water conservancy hubs, ensuring continuous production and trouble-free operation.
Key words:
Detail
Parameter category | JS500 Mixer liner | JS750 Mixer liner | JS1000 Mixer liner | JS1500 Mixer liner | JS2000 Mixer liner | JS3000 Mixer liner |
Material composition | High-chromium cast iron | High-chromium cast iron | High-chromium cast iron | High-chromium cast iron | High-chromium cast iron | High-chromium cast iron |
Size specification | Arc liner: Length 750mm× Width 150mm× Thicknes 35mm | Arc liner: Length 900mm× Width 180mm× Thicknes 40mm | Arc liner: Length 1000mm× Width 200mm× Thicknes 45mm | Arc liner: Length 1200mm× Width 220mm× Thicknes 50mm | Arc liner: Length 1500mm× Width 250mm× Thicknes 55mm | Arc liner: Length 1800mm× Width 280mm× Thicknes 60mm |
Installation parameters | Bolt | Bolt | Bolt | Bolt | Bolt | Bolt |
Dynamic parameters | Adapt the rotational speed of the stirring shaft 35r/min | Adapt the rotational speed of the stirring shaft 30.5r/min | Adapt the rotational speed of the stirring shaft 25.5r/min | Adapt the rotational speed of the stirring shaft 25.5r/min | Adapt the rotational speed of the stirring shaft 23r/min | Adapt the rotational speed of the stirring shaft 28r/min |
Life expectancy performance | 80,000 to 120,000 cans | 100,000 to 150,000 cans per session | 120,000 to 180,000 cans | 150,000 to 200,000 cans per session | 180,000 to 250,000 cans | 200,000 to 300,000 cans |

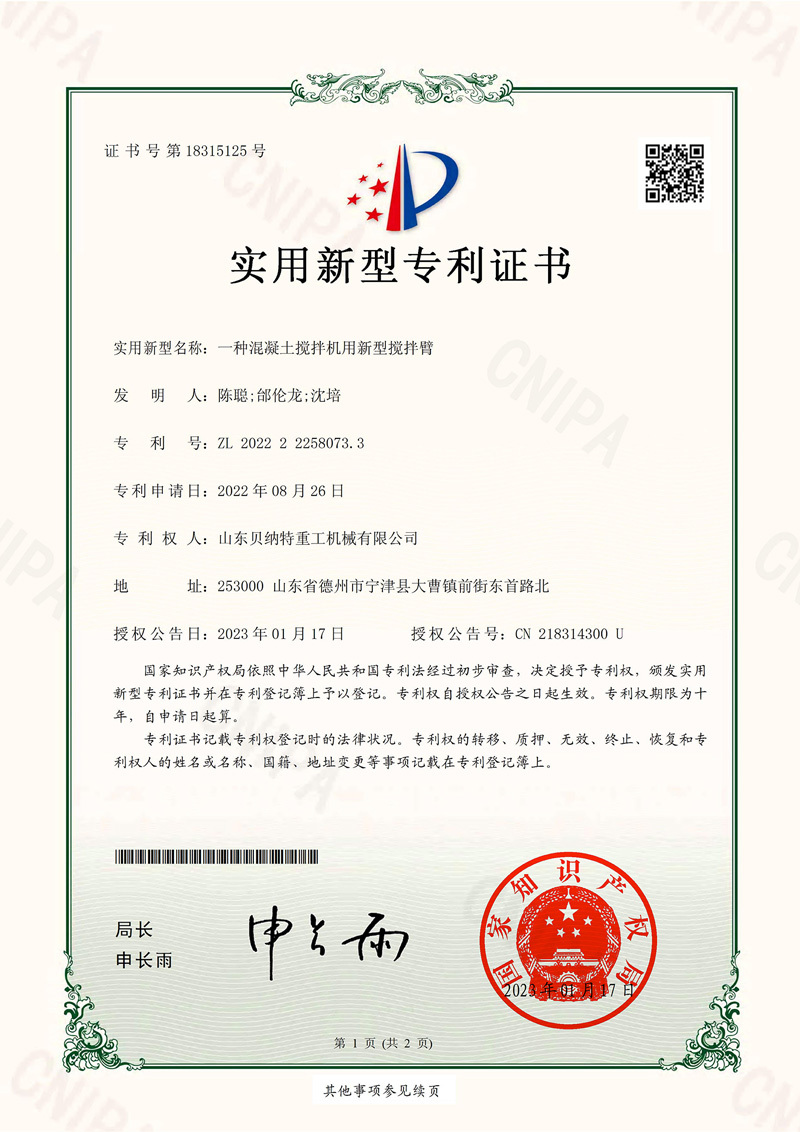

Quality Inspection Certificate

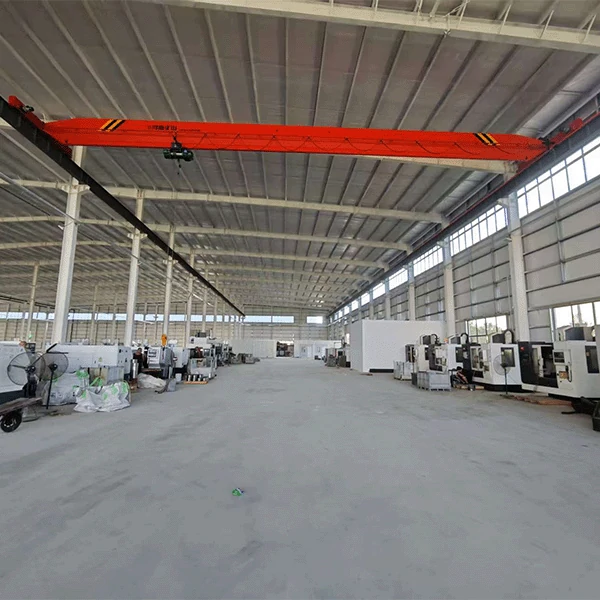

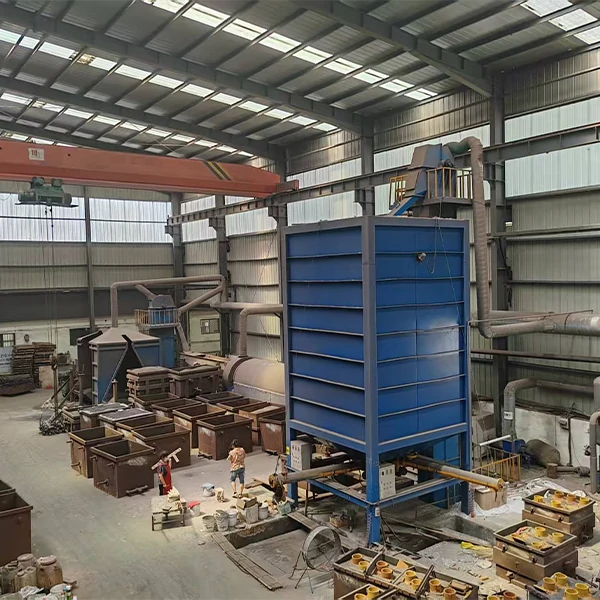

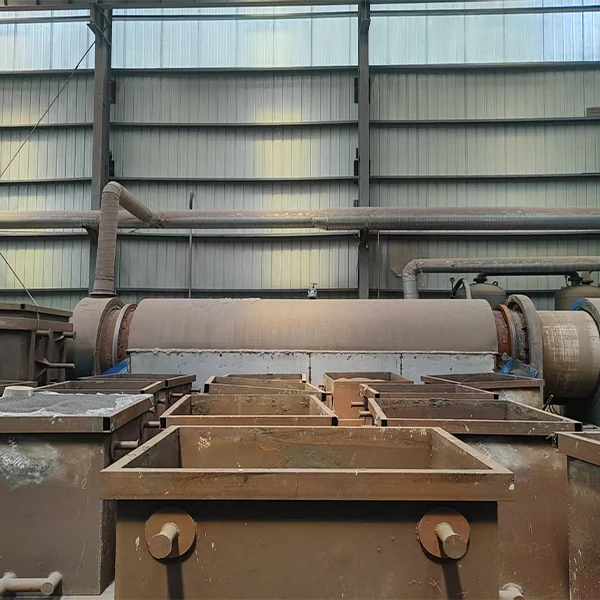

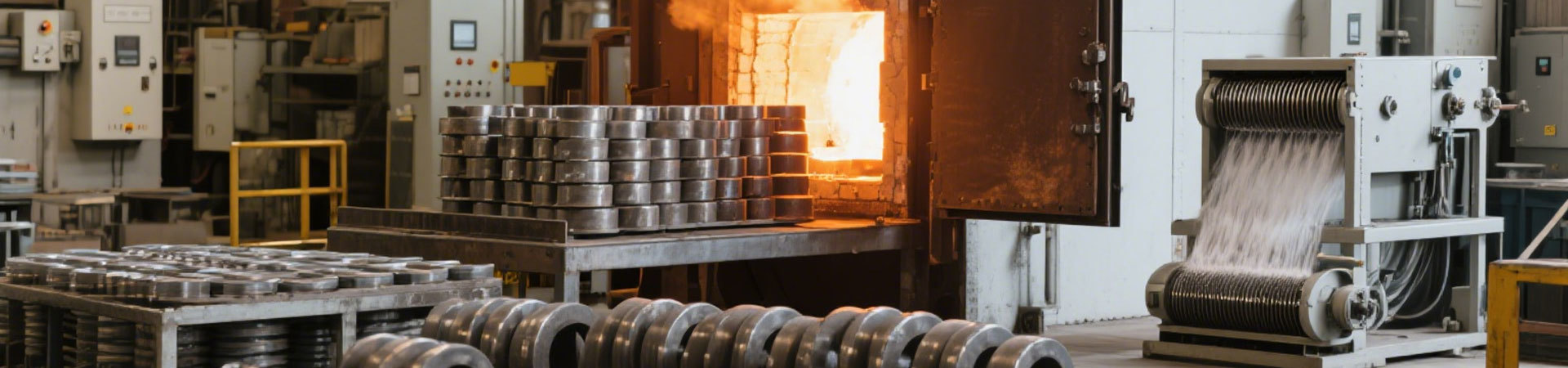

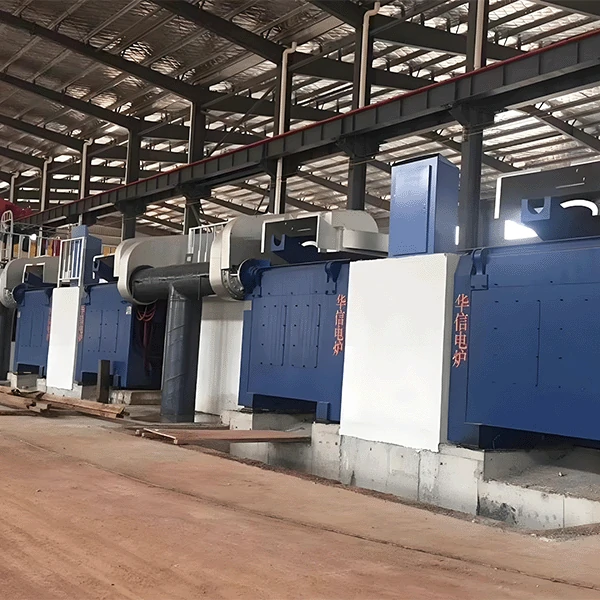

Casting production equipment

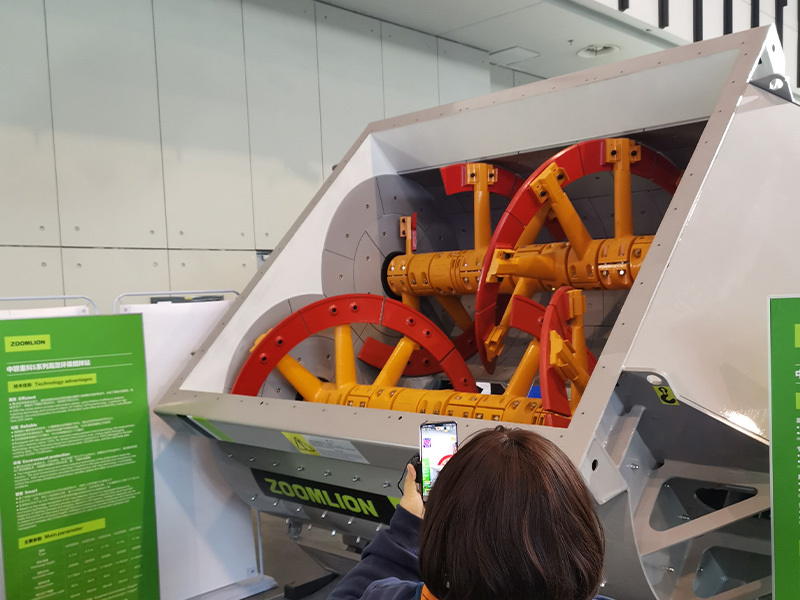

Exhibition
Inquiry
Please fill in the contact information and your needs, we will arrange professionals to contact you!
FAQ
Q
What types of mixer accessories does your company mainly produce?
A
We focus on producing the core wear-resistant parts of the JS series forced concrete mixers, including:
Mixing arm (double spiral belt/spiral blade type)
High chromium alloy liner (bottom plate/side plate)
Hydraulic seal shaft end assembly (including floating oil seal)
Wear-resistant alloy blades (spiral angle can be customized)
Wear-resistant guard plate for mixing tank
Q
How to ensure the wear resistance of the accessory material?
A
Triple strengthening process is adopted:
① Material upgrade: Liner/blade uses Cr20Mo2 high chromium alloy with a hardness of HRC58-62; shaft end uses QT600 ductile iron
② Structural optimization: The hyperbolic design of the mixing arm reduces material impact loss
③ Process guarantee: EPC lost foam casting
Q
How to confirm that the accessories match my equipment model?
A
Please provide any of the following information, and we will provide free adaptation verification:
✓ Host brand and model (such as: Sany JS2000, Zoomlion JS3000)
✓ Original accessories part number
✓ Measurement of key dimensions
Q
Is there any non-standard customization service?
A
We support personalized needs.
